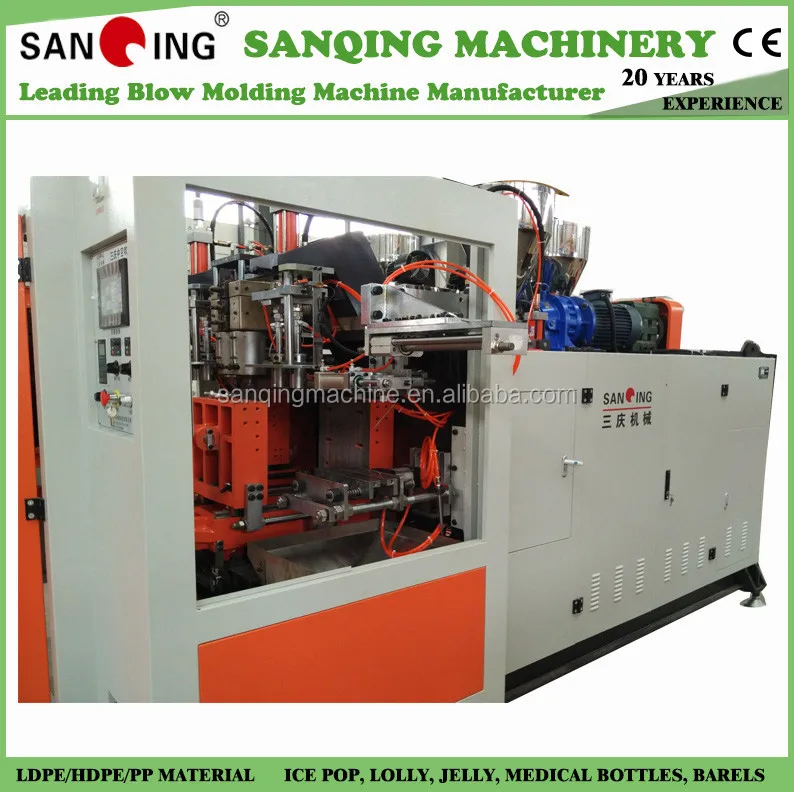

3 Ltr Jerry Can Blow Molding Machine PE Plastic Jerry Can Making Machine 6000kg

Name: 3 Ltr Jerry Can Blow Molding Machine PE Plastic Jerry Can Making Machine 6000kg
Brand: Sanqing
Price: 1 USD

Quality 3 Ltr Jerry Can Blow Molding Machine PE Plastic Jerry Can Making Machine 6000kg for sale

Brand Name : Sanqing

Model Number : SQ-11

Certification : CE ISO

Place of Origin : Cangzhou, Hebei

MOQ : 1 SET

Payment Terms : L/C, T/T

Supply Ability : 50 SET/Month

Delivery Time : 45 Days

Packaging Details : Wooden Case

Title : 3 Liter 5 Liter 10 Liter Plastic Jerry Can Hydraulic Blow Molding Machine

Plastic Processed : PE

Application : Medicine, beverage, juice

Dimension : 1960*1180*1960mm

Voltage : 220/380V

Weight : 6000kg

Power : 15kW

Contact Now

Product Name

3 Liter 5 Liter 10 Liter Plastic Jerry Can Hydraulic Blow Molding Machine

Product Description

Sanqing blow molding machines could cover 1ml to 100L, so above 2 Liter, necessary to have hydraulic powered machine to achieve qualified product. This type of hydraulic powered blow molding machine is able to produce until 5 Liter. The application could be water bottles, jerry cans, oil bottles and etc.

The machine is suitable to produce single layer, three layer and viewline bottles, it is good to produce plastic material such as HDPE/PP/LDPE.

This machine is controlled by PLC system, the working speed could be adjusted by operators over touch screen.

SPECIFICATIONS FOR 5 L Blow Molding Machine
Product Range	Max. Product Volume	5 L
	Product Max. Dia.	18 CM
	Thickness of Mould	150-220 mm
	Width of Mould Board	303 mm
	Distance of Mould Board	230 mm
	Production Speed	200-300 PCS/HR
	Applicable Raw Material	HDPE/LDPE/PP
	Distance of Mold	160-500 mm
	Force of Closing Mold	60 KN
Machine Parameters	Screw Dia.	75, 80, 90 mm
	Screw Rod Length/Dia. Ratio	25:1
	Speed Control Method	PLC
Energy Consumption	Heating Power	15 KW
	Hydraulic Pump Power	4.5 KW
	Extruder Motor Power	18.5 KW
	Air Consumption	0.6 m3/Min.
Machine Dimension and weight	Dimension	1960x1180x1960mm
Machine Dimension and weight	Weight	4.5 Ton
